Side-Entry vs Top-Down Shower Filter Cartridges in India

Two cartridges can hold the same media, the same weight of it, and filter very differently. The variable most people never look at is where the water goes in.

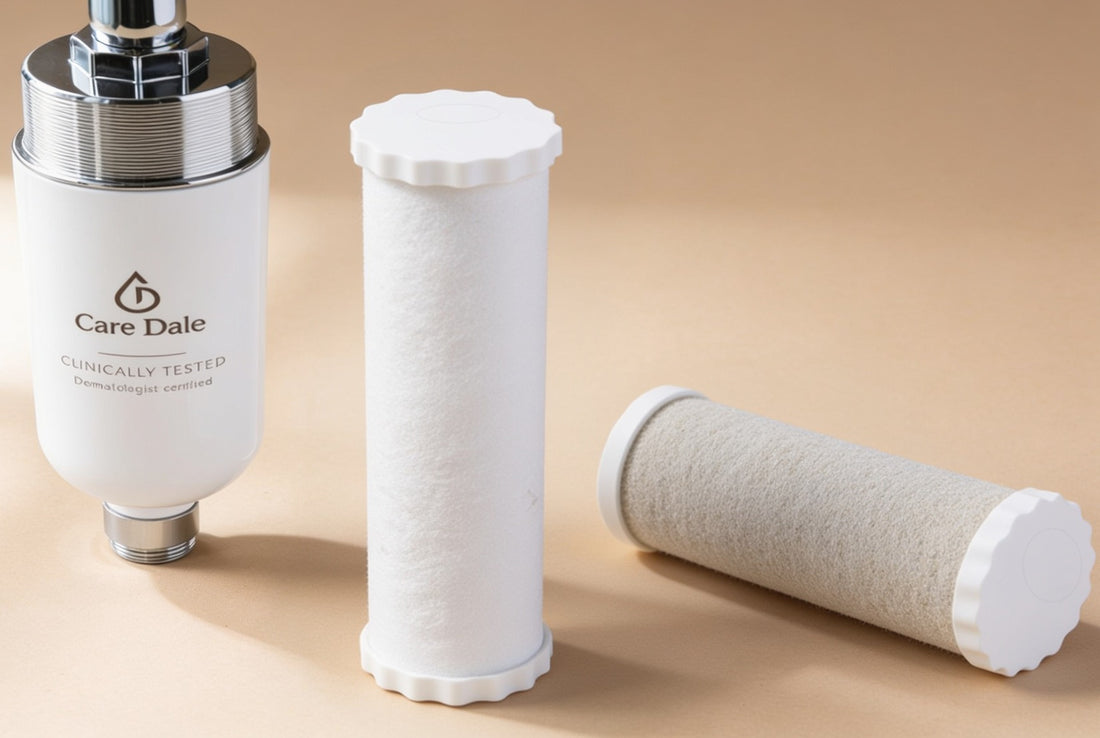

In normal cartridges, water flows straight from top to bottom. In the Care Dale cartridge, water enters from the sides. This keeps the water in contact with the filter media for longer, so it filters better.

Last updated: August 2026

	Top-down cartridge	Side-entry cartridge
Where water enters	Inlet at the top	Around the circumference
Path through the media	Short, straight down the centre	Longer, inward through the bed
Contact time	Lower for the same body size	Higher for the same body size
Bed used	Concentrated on the centre line	Spread across a wider face
Tendency to channel	Higher, once a route opens	Lower, because loading is more even
What it does not change	Nothing	What the media can chemically remove

How does water normally move through a filter cartridge?

Down the middle, and quickly.

The standard arrangement is an inlet at the top, a media bed in the body, and an outlet at the bottom. Water is pushed in at mains pressure, takes the most direct route available through the bed, and leaves. The path is short by design, because the shortest path is the easiest one to engineer and the cheapest one to mould.

The consequence is that a large share of the water crosses the media in a straight line, and the portion of the bed sitting off that line does proportionally less work. Filtration is not a switch that flips when water touches media. It is a set of processes, mostly adsorption and mechanical capture, that each need a period of contact to occur. The full stage-by-stage version is in how does a shower filter work.

A shower makes this harder than a kitchen filter does. Shower flow rates are high, the whole interaction lasts a few seconds per litre, and the cartridge has to be small enough to sit on a bathroom fitting. There is very little room and very little time.

There is a second effect that top-down flow encourages, and it has a name in water treatment: channelling. Once water has found a low-resistance route through a packed bed, it keeps taking it, and that route gradually opens up as material is carried along it. The bed can then look full while a growing share of the flow is bypassing most of it. A cartridge in this state has not run out of media. It has run out of media that the water is actually meeting.

Why does contact time matter in filtration?

Because adsorption is not instant.

When water passes through adsorptive filter media, chlorine and organic compounds are not strained out the way sediment is. They are held onto the surface of the media in a process that depends on the water and the surface being in contact long enough for it to happen. The US Environmental Protection Agency's Drinking Water Treatability Database documents contact time as a governing design parameter for adsorptive treatment. Engineers size these systems around how long water is held in the bed, because the same media performs differently at different contact times.

That principle scales down. A cartridge that holds water against its media for longer gets more out of the same media than one that lets it pass straight through.

Chlorine is the clearest case, and it is a real target rather than a theoretical one. Chlorine is added deliberately to Indian municipal supply as a disinfectant, and the EPA's national primary drinking water regulations set a maximum residual disinfectant level of 4 mg/L for it. It arrives at your shower on purpose. Reducing it at the fixture is a contact-time problem.

What changes when water enters from the sides?

The path gets longer without the cartridge getting bigger.

Water entering around the circumference has to move inward and through the media bed rather than straight down a central line. It engages more of the bed, and it stays in contact with the media for longer before it reaches the outlet. The water stays in contact with the filter media for longer, so it gets filtered better.

Why could the cartridge not simply be made bigger?

The design constraint that produced this is worth stating plainly, because it explains the shape. A shower filter cannot be made bigger. It has to fit between the wall and the shower head, it has to be light enough not to strain the fitting, and Indian bathrooms do not have space for a plumbed treatment unit at the point of use. Extending contact time by adding volume was not available. Redirecting the flow path was.

This is the same reasoning that led us to build small point-of-use units rather than large plumbed ones, which we set out in why we choose small, efficient filters over large, complicated softeners.

What does entering around the circumference change?

Entering around the circumference also distributes the incoming water across a wider face of the bed rather than concentrating it at a single point. A bed that loads evenly is a bed that is harder to channel through, and it means the media nearer the outer wall is doing work rather than sitting as passive filler. Both effects point the same way: more of what is inside the cartridge participates.

It is worth saying what this is not. It is not a claim to a new filtration mechanism. Adsorption and mechanical capture work the way they have always worked. The design is an attempt to get more out of them inside a housing that cannot get any bigger.

Side entry also pairs with the second thing we designed into the cartridge: it changes colour as it loads, so you can see the media working rather than assume it. That is covered in how do you know your shower filter is actually working.

Does side entry reduce water pressure?

This is the fair question to ask of any design that lengthens the path, and the honest answer is that every filter costs some pressure.

Any cartridge placed in a line creates resistance. A denser bed, a longer path or a partially loaded cartridge all add to it. The trade being made is deliberate: enough resistance to hold water against the media, not so much that the shower becomes unusable.

What changes pressure most in practice is not the flow path but the state of the cartridge. A cartridge near the end of its life is holding months of accumulated material, and that is what people usually feel as a drop. If pressure has fallen noticeably, the cartridge is the first thing to check, not the plumbing. When to replace your shower filter cartridge covers both the maintenance and the replacement side.

Homes on borewell or tanker supply load a cartridge faster and will notice this sooner, which is mapped against supply type in shower filter cartridge life by water hardness.

What should you compare when buying a cartridge?

Flow path is one line on a longer list, and it is the line most product pages leave off entirely. Four things are worth asking about together.

What the media is rated to reduce. This is the ceiling on everything else. Ask what the cartridge targets and against which parameters, not just what it is made of.

How much media it holds. Volume sets the total capacity available before replacement. A small cartridge used well still runs out sooner than a large one used well.

How the water meets that media. Contact time and even distribution determine how much of the capacity you actually get. This is where flow path sits.

What your supply is carrying. The right cartridge for treated municipal water is not the right cartridge for borewell or tanker supply, because the load is different in kind and not only in quantity. The Central Pollution Control Board's water quality criteria give a sense of how widely groundwater quality varies across the country, and it is the reason we build separate municipal and borewell variants rather than one cartridge for everything.

A specification that answers only the first two is describing a bill of materials. The last two are what decide the result at your shower.

Where does side entry not help?

Flow path is a lever on how well media performs. It is not a lever on what the media is chemically capable of removing, and the distinction matters.

Contact time cannot give a cartridge an ability its media does not have. Hardness is dissolved calcium and magnesium, described by the World Health Organization as dissolved polyvalent metallic ions in solution, and the US Geological Survey traces it to the rock the water has travelled through. Reducing dissolved hardness needs the right media chemistry. No amount of extra contact makes an unsuitable medium capture it.

Nor does it change the category of the product. A shower filter reduces hardness minerals, chlorine, odours and micro-particles at one fixture. It does not lower TDS, remove heavy metals or bacteria, or treat the geyser, the washing machine or the kitchen tap. If the problem is scale across the whole property, the honest answer is a different class of equipment, which we compare in cartridge filters vs magnetic softeners vs RO.

It also will not show up on a TDS meter. That is not a design failure, it is a measurement mismatch, and a TDS reading is the wrong instrument for the question.

Anyone comparing cartridges should also be checking what the media is rated to reduce against a published standard such as IS 10500, rather than treating flow path alone as proof of performance. Design decides how well media is used. It does not decide what the media is.

Where to get one

Every Care Dale filter ships with the side-entry, colour-changing cartridge. Replacements are available for municipal water and for borewell and tanker water, and both fit all Care Dale filter bodies.

Frequently Asked Questions

Is a side-entry cartridge better than a standard one? It uses the same quantity of media more thoroughly, because water is held against the bed for longer instead of passing straight through. That is an efficiency gain, not a change in what the media can chemically remove, so it should be judged alongside the media rating rather than instead of it.

Does a longer flow path mean slower water? Every filter adds some resistance, and the design balances holding water against the media with keeping the shower comfortable. In practice, a noticeable pressure drop is far more often a cartridge near the end of its life than the flow path itself.

Can I fit a Care Dale cartridge into another brand's filter body? No. The cartridge is built for Care Dale filter bodies and relies on the housing to direct water in from the sides. Fitted into a housing designed for top-down flow, the inlet geometry does not line up and the contact-time benefit is lost.

Is more filter media always better than a better flow path? Not on a shower fitting. Media volume is capped by what will physically fit between the wall and the shower head, so once that limit is reached, using the media well is the remaining variable. Flow path is how a small cartridge gets more out of what it holds.

Does the design change how often I replace the cartridge? No. Replace when fully brown, or at 6 months, whichever comes first. The flow path changes how well the media is used, not how much it can hold. Homes on borewell or tanker water usually reach the colour threshold sooner than homes on municipal supply.

Does any of this reduce TDS? No. A shower filter reduces hardness minerals, chlorine, odours and micro-particles at the fixture. It does not lower total dissolved solids, and it does not remove heavy metals or bacteria, because it is filtration rather than purification. A TDS meter will barely register it.
