How Does a Shower Filter Work? The Multi-Stage Mechanism Explained (2026 India Guide)

A shower filter cleans bath water through a single cartridge containing several stacked layers - generally a sediment or nano-thread pre-filter, an activated-carbon or redox media block, and a final polishing layer.

Each stage targets a specific class of contaminant, and the difference between a filter that actually works and one that does not is the presence and quality of these stages.

This guide explains exactly how each common stage works, what it can and cannot remove, and how the 3-layer architecture inside the Care Dale filter - India's only dermatologist-certified, clinically tested shower filter - maps to the real-world contaminant profile of Indian shower water.

What is a shower filter and where does it sit in the plumbing?

A shower filter is a point-of-use water filtration system installed between the wall-mounted shower arm and the shower fixture. The water from your building's plumbing goes into the top of the cartridge, flows through all the various filtered components stacked inside the filter body, and then exits out the bottom of the filter into the shower fixture - all in a matter of seconds.

The design of a point-of-use system is significant for the treatment of water; however when you have a whole-house system that treats the water at the entry point, when you get to your showerhead, the water has traveled several feet through a tank, a booster pump, and 30+ feet of plumbing. As water moves along this path, it will pick up sediment, biofilm, and pipe leached metals as it comes into contact with these materials.

A filter that is installed directly before your showerhead will filter out everything that was missed by the upstream filter (your whole-house filter). The purpose of a shower filter is NOT to replace an RO unit on the drinking tap; both units have different purposes and work at different flow rates.

How does the sediment stage work?

Every shower water goes through a mechanical "pre-filter," which is a tightly woven mesh or a spun polypropylene wrap or a combination of both that usually has a pore size rating from 5 microns to 50 microns. The only function of the mechanical pre-filter is to trap physical particles larger than its rated pore size on or above the surface of the mesh.

This level is where most of the visible load comes from in typical Indian bathrooms: (a) rust flakes from old galvanised pipes, (b) grains of sand that are pumped up from underground sumps and (c) scale debris produced from ageing geysers as well as (d) the rare amount of algae debris that builds up from the top mounted overhead storage tanks.

If this level were not present the downstream activated carbon and ultrafiltration layers would become blocked within days due to an abundance of solids contaminating the water using standard Indian water quality.

A new shower filter sometimes shows a momentary cloudy tint in the first 10 seconds of use because of sediment release from new media as part of the installation process. This clears within the first few minutes of flushing, and by the third use the discharge is completely clear.

How does activated carbon remove chlorine and chloramine?

Activated carbon is a key element present in each functionally effective shower filter's second stage; typically in form of either granular activated carbon (or GAC) or as a sintered carbon block. Adsorption is different from absorption: in adsorption, impurities bind to the surface of the activated carbon rather than being soaked into its bulk.

Activated carbon is a highly porous material with many small cavities. The total surface area of one gram of activated carbon can range from approximately 500m² to 1,500m². As the water passes through the activated carbon, impurities (such as chlorine, chloramine or organic compounds) will attach themselves to the large surface area of the activated carbon.

Municipal water supplies in India use free chlorine as a primary disinfectant. Carbon adsorption is extremely effective at removing this type of chlorine from the water supply; in fact, the addition of a high-quality carbon filter can eliminate up to 95% of free chlorine from the water during a single pass (while the water is flowing through the shower) due to the short contact times associated with showering.

On the other hand, chloramines are difficult chemicals to remove because they dissolve in water more readily than chlorine, making them more difficult to remove through carbon filtration. Because of this, special types of carbon called catalytic carbons that are doped with copper or other catalytic materials are typically found in high-end shower filters that are specifically designed to remove chloramines.

Activated carbon also absorbs the volatile organic compounds (VOCs) found in some types of municipal water from India after the monsoon season, which can contribute to odors, as well as lower the levels of trihalomethanes (THMs), which are formed when chlorine is used as a disinfecting agent.

What activated carbon does not do is to efficiently remove dissolved heavy metals, hard-water minerals, or microbial load from the water; this is why we have the next two stages.

How does the redox / hardness-mineral stage work?

The third phase targets dissolved contaminants that flow directly through carbon and sediment. The most common media for this phase include KDF - a copper and zinc based redox alloy - and proprietary hardness-targeting block media such as Care Dale's CareTec™.

KDF makes use of a chemistry process called "redox" (reduction-oxidation) when treating water. When water containing dissolved metals such as iron, lead, or manganese comes into contact with copper and zinc, an electrochemical reaction occurs - heavy metal ions are removed from solution and deposited onto the filter media as metallic deposits.

In addition to removing heavy metals in water, redox will also convert any residual free chlorine into a non-harmful chloride salt through the same process. KDF is used in many shower filters because it can treat water at the high flow rates and warm temperatures of a shower without being consumed too rapidly.

Care Dale's CareTec™ Ultra Filtration Technology is engineered specifically for the calcium and magnesium hardness load that dominates Indian groundwater - the mineral residue that drives dryness, frizz, and the chalky scum on hair, skin, and bathroom fittings.

It is tuned to the Indian hardness-mineral profile rather than the lower-mineral western markets where most KDF-only filters were originally developed.

None of the stages perform reverse osmosis, and RO is the only means to remove dissolved amounts of arsenic, fluoride, and total dissolved solids (TDS) within meaningful quantities from drinking water flow rates - these are not shower filter problems or otherwise. No honest brand makes claims to the contrary.

How does the ultrafiltration membrane work at 0.01 microns?

The last part of a modern multi-stage shower filtering device is an ultra-filtration membrane where the pore size is 0.01 micron, (which is roughly 100 times smaller than the pore size of the sediment stage). Ultra-filtration uses pressure to separate particles from water molecules; therefore, water molecules can pass through but anything that has a larger particle size than the 0.01-micron pore cannot pass through the ultra-filtration membrane.

At 0.01 micron the UF membrane removes:

• All bacteria (average size 0.5-5 micron) - eg E. coli, Pseudomonas and biofilm shedders on overhead tanks
• Most protozoa and cysts - eg Giardia, Cryptosporidium
• Colloidal iron and manganese that passed through the redox stage in fine particulate form
• Sub-micron sediment that passed the mesh pre-filter

Ultrafiltration does not remove dissolved salts or viruses smaller than the pore size; dissolved salts are addressed at the third stage, and viral risk through bath-water exposure is not a meaningful concern at typical showering contact.

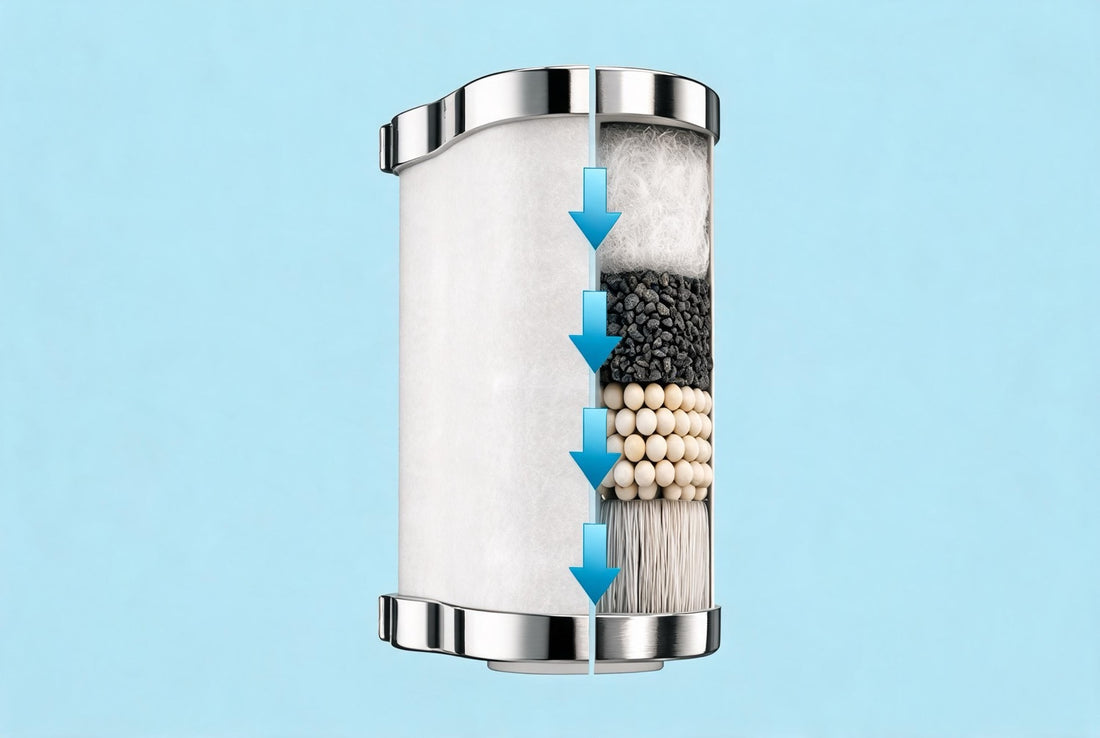

The Care Dale 3-layer cartridge consists of the Pre-Filtration Layer (4000 nano threads that trap contaminants 200× smaller than a human hair), CareTec™ Ultra Filtration Technology (neutralises calcium and magnesium hardness minerals), and the Chlorine & Impurities Removal Layer (removes chlorine, odors and impurities). The same architecture is used in both the Care Dale Municipal and Care Dale Borewell variants. Care Dale can be purchased directly from caredale.in or from Amazon. The cartridge requires some initial installation (see shower filter installation guide for Indian fittings for installation instructions for G½″ threads) and generally needs to be replaced after 5-6 months on regular municipal water.

Frequently asked questions

Do shower filters actually work?

A good multi-stage shower filter can lower the amount of free chlorine (and the amount of chloramine), dissolved iron, manganese, particulate sediment, and the amount of microbes present at your showerhead. However, it will not reduce or remove the dissolved salt content that makes up your TDS number. Also, this shower filter will not replace the use of an RO system when drinking water is needed.

What does a shower filter remove?

First, a multi-stage shower filter removes rust and sediment in its first phase. Next, chlorine, chloramines, and volatile organic compounds (VOCs) are removed during the activated-carbon phase.

During the redox or proprietary media phase, dissolved iron, manganese, and residual free chlorine are removed. Finally, ultrafiltration membranes remove particulates at the sub-micron level and bacteria.

Combined, all stages work together to meet the contaminant profiles typically found in Indian bathing waters.

Does a shower filter soften hard water?

A shower water filter is effective at minimizing the effects of hard water (such as dry, itchy skin and hair) by filtering out some of the impurities that come along with hard water such as dissolved heavy metals and chlorine, but it does not take away calcium and magnesium ions in the hard water that a TDS meter reads.

To truly soften water at the flow rate through a showerheads, an ion exchange resin or reverse osmosis would need to be used; however this is impractical for a point of use application like a showerhead filter.

Is ultrafiltration the same as RO?

No. Ultrafiltration operates using membranes of a size 0.01 micron, which removes particulates and bacteria from water, as well as some solids or colloids, while still permitting the passage of dissolved ions and other soluble salts. Reverse osmosis employs membranes that are approximately 0.0001 micron in diameter, resulting in being able to remove dissolved salts; however, this process has high flow rates and produces large amounts of wastewater, which makes it impractical to use for showering.

How long does shower filter media last?

A Care Dale 3-layer cartridge has a lifespan of 5-6 months when supplied with standard Indian municipal water. The lifespan drops to 3-4 months on borewell water with TDS above 1000 ppm (typical of NCR and the suburbs of Bangalore) because the hardness-mineral and pre-filtration layers load faster.

Additionally, you can visually track (through the translucent housing) when to change out the cartridge by observing the media darkening as it loads with particulates instead of having to rely on guess work on when to replace it.
