Ultrafiltration Explained: How UF Membranes Work in Modern Water Filters (2026)

Last updated: 12 May 2026 · Reviewed by Roshni Kar, Co-Founder Care Dale

Ultrafiltration is pressure-driven membrane filtration. Pores between 0.01 and 0.1 micron. The membrane physically sieves contaminants out of water - bacteria, protozoan cysts (Giardia, Cryptosporidium), most viruses, colloids, microplastics. All blocked. Water and dissolved minerals pass straight through, though. The EPA puts UF in its "membrane toolbox" for meeting the Long Term 2 Enhanced Surface Water Treatment Rule.

What is ultrafiltration in water treatment?

Ultrafiltration is a low-pressure membrane process that separates anything larger than ~0.01 micron from water. Second-finest of the four common membrane categories, after RO and NF. Size exclusion, not chemistry. That is the whole mechanism. WHO puts microbial contamination as the single largest drinking water risk; 1.7 billion people use a faecally contaminated source.

A UF system pushes feed water at 1-5 bar across a polymeric membrane - usually PVDF, PES or PVC. Pathogens, sediment and macromolecules stay on the feed side and get flushed out. Energy use is far lower than RO. Reject water? Minimal, or none at all. For most Indian municipal supplies, UF paired with a chlorine-neutralising media like CareTec does the job; for high-TDS borewell input it gets more involved, and we cover that in shower filter vs water softener for Bangalore homes.

How does a UF membrane physically work?

Mechanical sieving. Water passes through 0.01-0.1 micron pores under 1-5 bar pressure, larger particles get blocked. That is the whole thing. Pore diameters of 0.01-0.1 micron map to a molecular weight cut-off of roughly 1,000-500,000 daltons. Flux and fouling rate? Those come down to module geometry and flow regime.

How Do Hollow Fibre UF Modules Work?

Hollow fibre dominates in drinking water. Thousands of straw-like polymer fibres (inner diameter 0.5-2 mm) get bundled into a cartridge, and water flows inside-out or outside-in across the fibre wall. Surface area per litre of housing is huge. A 25 cm cartridge handles thousands of litres before fouling. This is the geometry inside the Care Dale tap and shower filter for municipal water.

Spiral-wound modules

Spiral-wound UF wraps a flat-sheet membrane around a central permeate tube. Harder to backwash. That is why you rarely see it in point-of-use filters. In industrial dairy and pharma it dominates though.

Crossflow vs dead-end operation

Dead-end mode pushes the whole feed through the membrane. Solids pile up on the surface. Backwash or replace. Crossflow is different - feed water runs parallel to the membrane, only part permeates, the rest sweeps contaminants out. Shower and tap filters run dead-end. Crossflow needs a recirculation pump, and household plumbing does not have one.

What does ultrafiltration remove, and what doesn't it remove?

A 0.01 micron UF membrane strips out essentially all bacteria, protozoan cysts, suspended solids, colloids, and most microplastics. Dissolved ions, though? Different story. Calcium and magnesium (the scaling culprits) sail right through. Same for fluoride, nitrate, arsenic, chlorine.

Contaminant	Typical size	Removed by 0.01 micron UF?
Sand, silt, sediment	>1 micron	Yes
Cysts: Giardia, Cryptosporidium	3-15 micron	Yes
Bacteria (E. coli, Vibrio)	0.2-5 micron	Yes
Microplastics (most fragments)	1-5,000 micron	Yes
Viruses (rotavirus, norovirus)	0.02-0.1 micron	Partial to substantial
Dissolved organics, tannins	<0.001 micron	Sometimes (large humics yes)
Dissolved salts, TDS	0.0001 micron	No
Calcium, magnesium ions	<0.001 micron	No
Fluoride, nitrate, arsenic ions	<0.001 micron	No
Free chlorine	molecular	No (needs chlorine-neutralising media like CareTec)

Microbes and protozoan cysts

In a well-maintained module, UF hits 4-6 log removal of bacteria and protozoan cysts. EPA recognises it as a Cryptosporidium-removal technology under LT2, and grants a 4-log virus removal credit when UF is paired with disinfection. NSF/ANSI 419 certifies UF/MF modules for public drinking-water duty. The EPA Membrane Filtration Guidance Manual puts it neatly: membrane filtration is a "porous barrier to the passage of particles". Viruses are trickier. The smallest ones start approaching the pore size, so removal varies.

Sediment, colloids and microplastics

Anything you can see (turbidity, rust, silt) is trivial to block. Microplastics are more interesting. Reviews of drinking-water studies report UF removal between 72% and over 99%. That is a big range. The WHO microplastics in drinking-water report flags particles spanning roughly 0.1 to 5,000 microns across studied samples. Performance drops once cartridges age past their rated life.

What UF cannot do: dissolved solids

UF cannot reduce TDS. Dissolved hardness ions, fluoride, nitrate - none of those come out at the membrane. Feed in 800 ppm TDS, you get 800 ppm out. Roughly. Which is exactly why pure UF is not enough on its own for borewell water in Hyderabad or parts of Chennai, where TDS often crosses 1,200 ppm. For that case, see the tap and shower filter for borewell and tanker water.

How Does UF Compare with RO, NF and MF?

The four membrane processes sit on a continuum, sorted by pore size and pressure. MF handles turbidity. UF adds microbial safety. NF starts pulling out divalent ions. RO strips almost everything dissolved. And as pores shrink, cost and water wastage climb. Every time.

Process	Pore size	Pressure	Removes	Typical home use
Microfiltration (MF)	0.1-10 micron	0.1-2 bar	Sediment, some bacteria	Pre-filter stage
Ultrafiltration (UF)	0.01-0.1 micron	1-5 bar	Microbes, microplastics, colloids	Drinking, shower, point-of-use
Nanofiltration (NF)	0.001-0.01 micron	3-20 bar	Above + most hardness + some salts	Selective softening
Reverse osmosis (RO)	<0.001 micron	10-80 bar	Above + nearly all dissolved salts	High TDS, heavy metals

So when does each make sense? RO when input TDS is above ~500 ppm, or when arsenic/fluoride show up. UF when the worry is microbial safety and TDS is already in drinkable range - most Indian municipal supplies, basically. NF if you want selective softening. Rare in Indian homes, mostly because of cost.

Why Are Shower and Tap Filters Using UF Now?

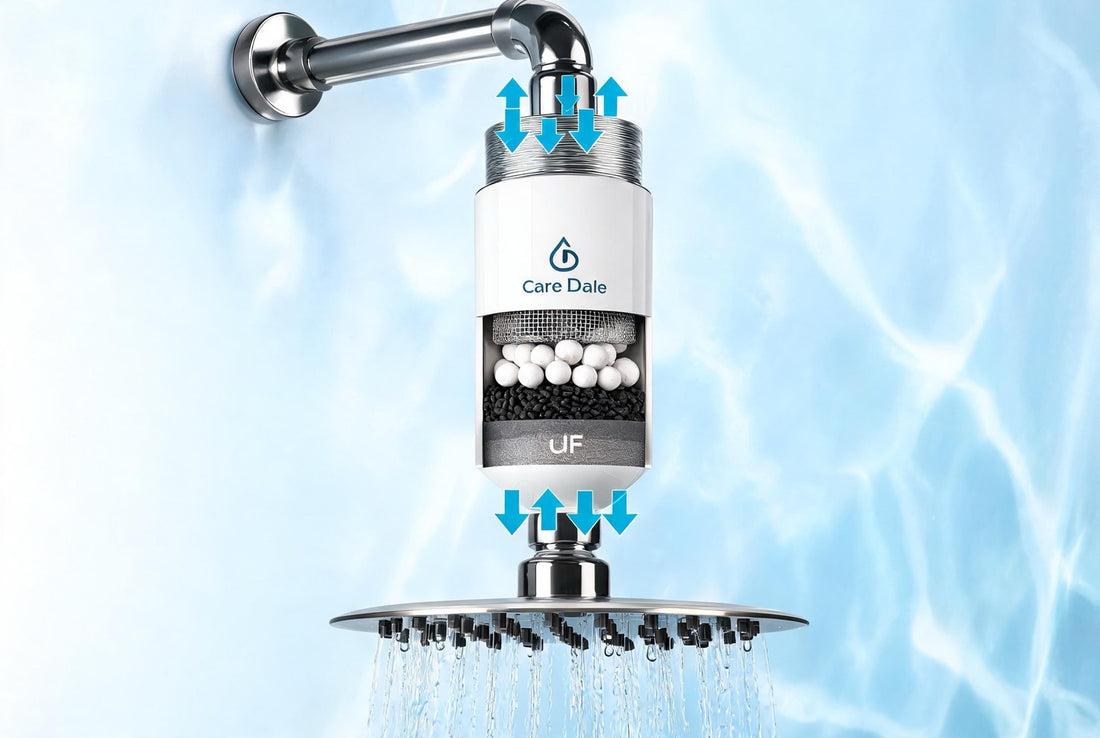

UF has moved out of the kitchen and into shower and tap filters because the bathroom problem is a different problem. You are not drinking shower water. TDS is irrelevant. What matters is chlorine, hardness scale on hair, microbial safety after long pipe transit, microplastics. UF plus the right complementary media covers all four. No pressure drop, no reject water, none of the complexity RO brings. For the skin and hair angle, see how tap and shower filters protect skin and hair.

Chlorine removal needs a neutralising media, not UF alone

Chlorine is a small dissolved molecule. Slips through any UF pore. You need a chlorine-neutralising media in the same housing — Care Dale uses its proprietary CareTec blend, which neutralises free chlorine and chloramines through surface chemistry without chemical exchange. A "UF-only" shower filter is almost a contradiction in terms.

Hardness needs a stabilising media, not UF

UF does not block dissolved calcium and magnesium. So modern cartridges bring in a stabilising media — Care Dale uses its proprietary CareTec blend, designed specifically for high-TDS Indian water. Within the ultrafiltration membrane housing, CareTec media neutralise dissolved calcium and magnesium, preventing limescale buildup and leaving skin and hair free from hard water damage. No chemical exchange involved, which is good because chemical exchange needs very frequent maintenance (every 2 weeks). See the best shower filter for hard water in India for a side-by-side breakdown.

How Long Does a UF Cartridge Last?

UF + CareTec cartridges run 3-6 months in Indian homes, roughly 25 kL of throughput. Across Care Dale field data from over 50,000 homes, a typical 4-person household replaces a 25 kL cartridge every 3-4 months. Turbidity, hardness and chlorine load all shift the number. Order a fresh replacement cartridge for municipal water when throughput drops.

How Do You Choose a UF-Based Filter in India?

Match the tech to your water chemistry, not the marketing copy. For a typical apartment on municipal supply in Bangalore, Pune, Mumbai or Delhi, a UF + CareTec shower filter (₹1,500-2,000) covers microbial safety, chlorine and scale in a single housing. For borewell or tanker water above 1,200 ppm TDS, the answer changes - keep RO at the kitchen tap, run UF in the bathroom separately. To understand the founding context and clinical study behind the technology, read our story.

Common Mistakes When Buying a UF Filter

• Expecting UF to lower TDS: UF passes dissolved salts; it removes particles and microbes, not ions.
• Skipping the chlorine-neutralising stage: UF alone does not strip chlorine - pair it with a CareTec-style neutralising media in the same housing.
• Picking a non-rated module: look for NSF/ANSI 419 or equivalent third-party testing.
• Ignoring cartridge throughput: a 25 kL cartridge in a 4-member household lasts roughly 4 months.
• Buying RO when UF is enough: RO wastes ~70% of input water and removes minerals you may want.

Frequently Asked Questions

Is ultrafiltration the same as RO?

No. UF pores sit at 0.01-0.1 micron and stop microbes, sediment and microplastics. RO pores go below 0.001 micron and additionally pull out dissolved salts, fluoride and nitrates. UF runs at 1-5 bar with little reject water; RO needs 10-80 bar and throws away 25-50% of feed water as concentrate.

Does a UF filter reduce TDS?

No. Dissolved calcium, magnesium, sodium and chloride ions are roughly 100 times smaller than the smallest UF pore, so the membrane cannot stop them. Feed in 600 ppm TDS, permeate comes out near 600 ppm. For real TDS reduction you need RO or distillation.

Can ultrafiltration remove viruses?

Partially. Most waterborne viruses (rotavirus, norovirus, hepatitis A) measure 0.02-0.1 micron, which overlaps the UF pore range. A 0.01 micron membrane with intact fibres takes out 3-4 logs of virus, but the smallest particles can sneak through pinholes. EPA practice pairs UF with disinfection (UV or chlorination) for full virus removal.

Is UF safe for daily drinking water?

Yes, provided input TDS, fluoride and nitrate are within acceptable limits. UF paired with a chlorine-neutralising media like CareTec gives microbiologically safe water that keeps the beneficial minerals - that is the default in many European point-of-use systems. For Indian borewell above 500 ppm TDS, pair UF with RO at the drinking tap and use UF-only filters for the shower.

How long does a UF membrane last?

In a point-of-use cartridge, the UF + CareTec cartridge typically runs 3-4 months, or roughly 25,000 litres in average Indian conditions. In industrial drinking water plants the membrane fibre itself can last 5-10 years with regular chemical cleaning. High turbidity, chlorine load and water hardness all shorten cartridge life.

Can ultrafiltration remove microplastics?

Yes, to a large extent. Peer-reviewed reviews of drinking-water studies put UF microplastic removal between 72% and over 99%, and full-scale municipal plants commonly clear 97.5% when UF sits in the treatment train. Aged or pinholed cartridges lose performance, so timely replacement matters more than anything else.

What is NSF/ANSI 419, and does my filter need it?

NSF/ANSI 419 is a U.S. standard for MF and UF modules used in public drinking water systems, certifying microbial removal aligned with EPA LT2 rules. It is a municipal-scale certification and rarely shows up on point-of-use cartridges. For home filters, look at material safety (NSF/ANSI 61) and a published log-removal claim instead.
